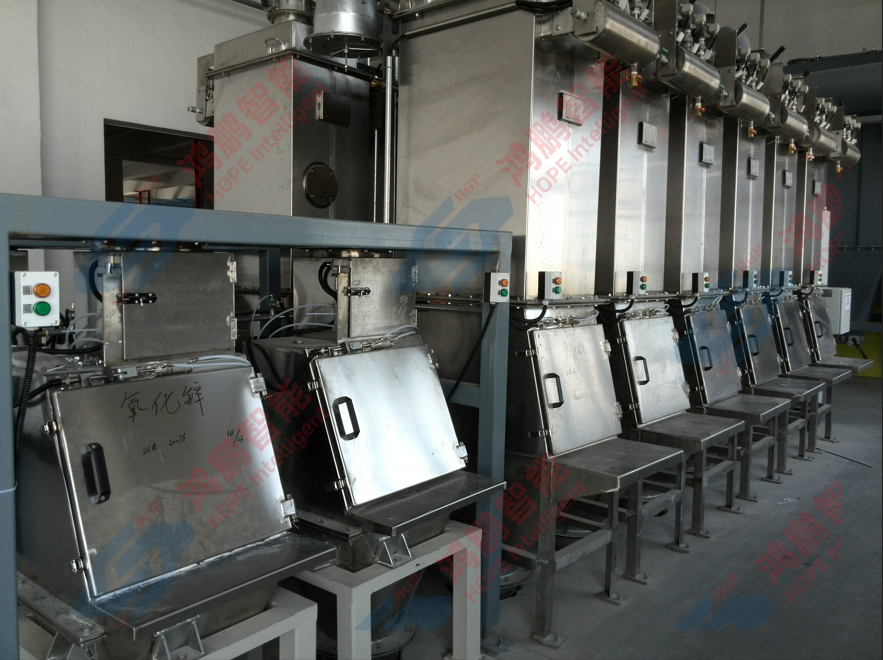

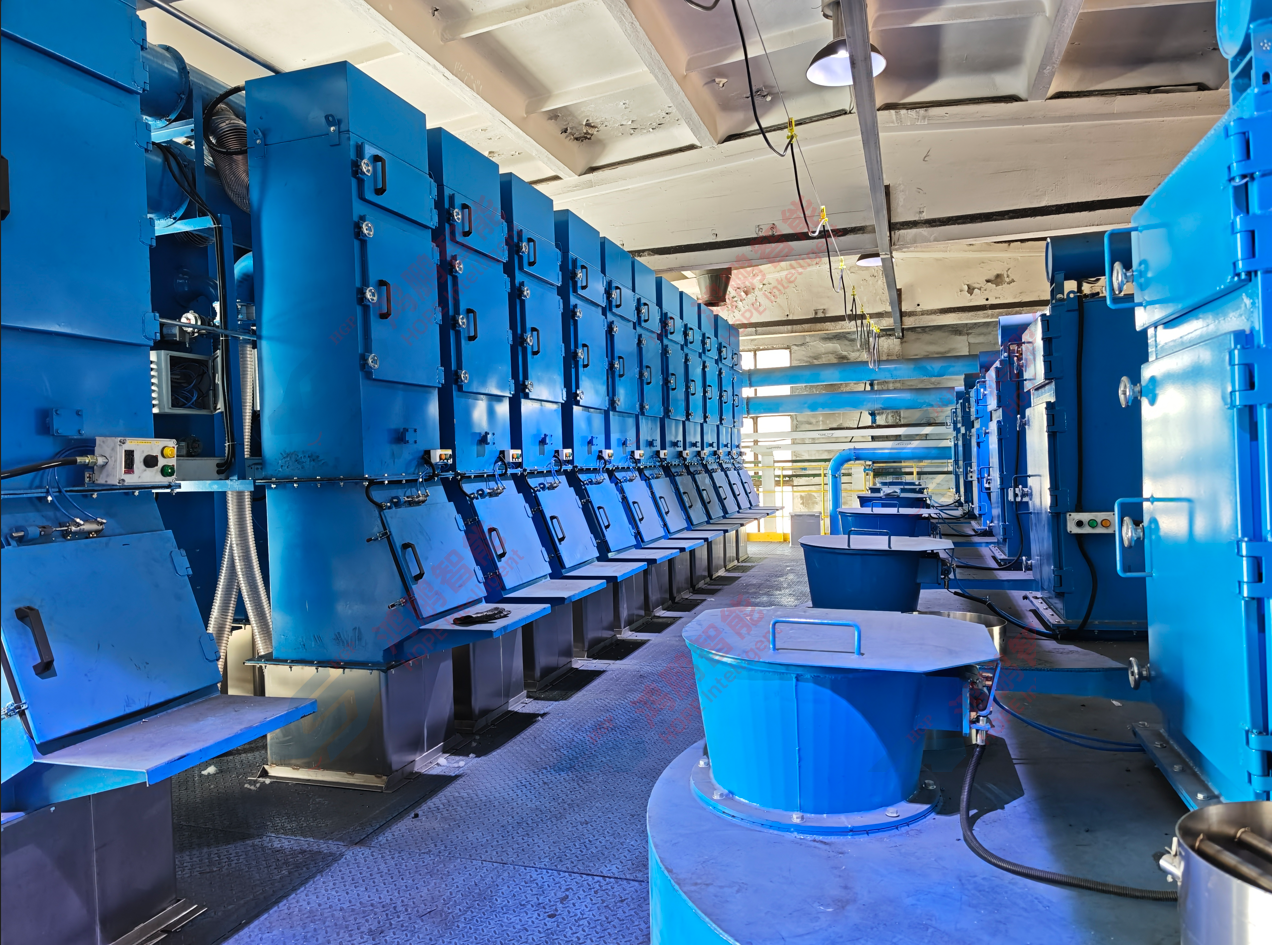

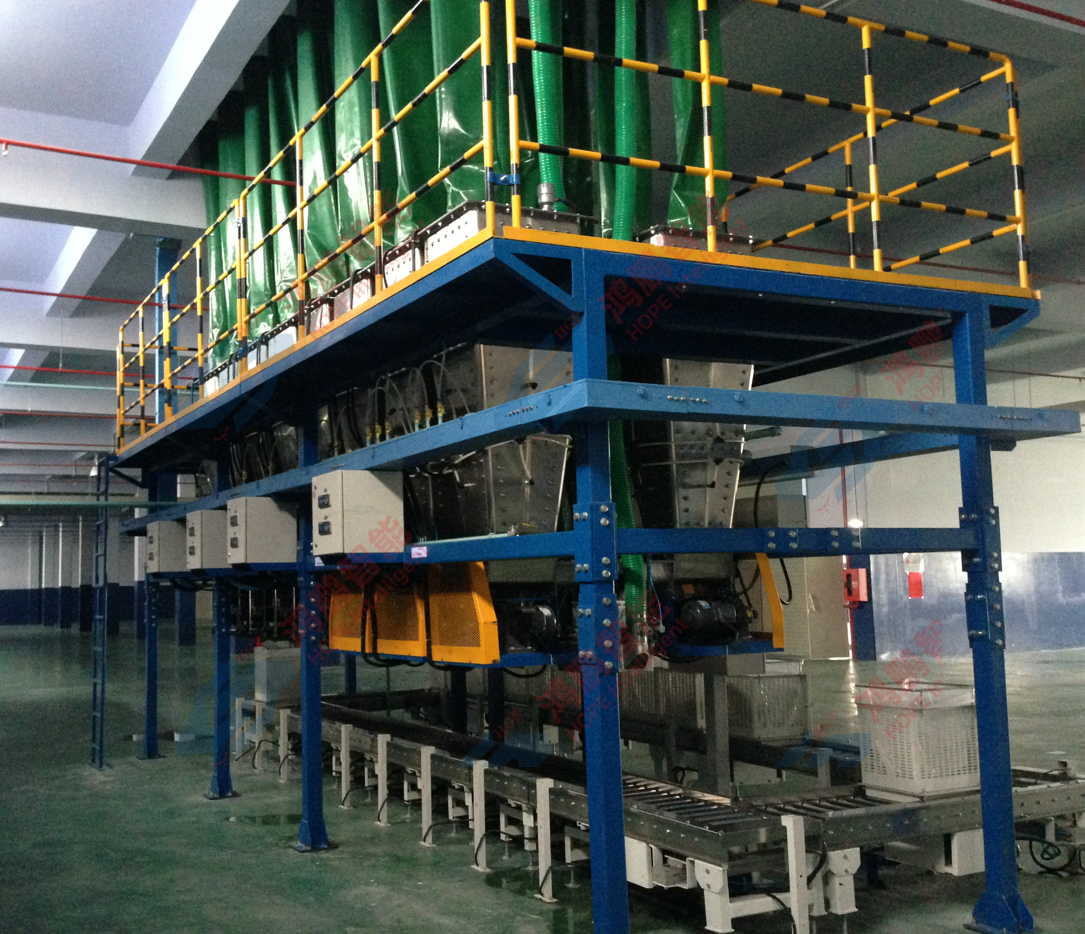

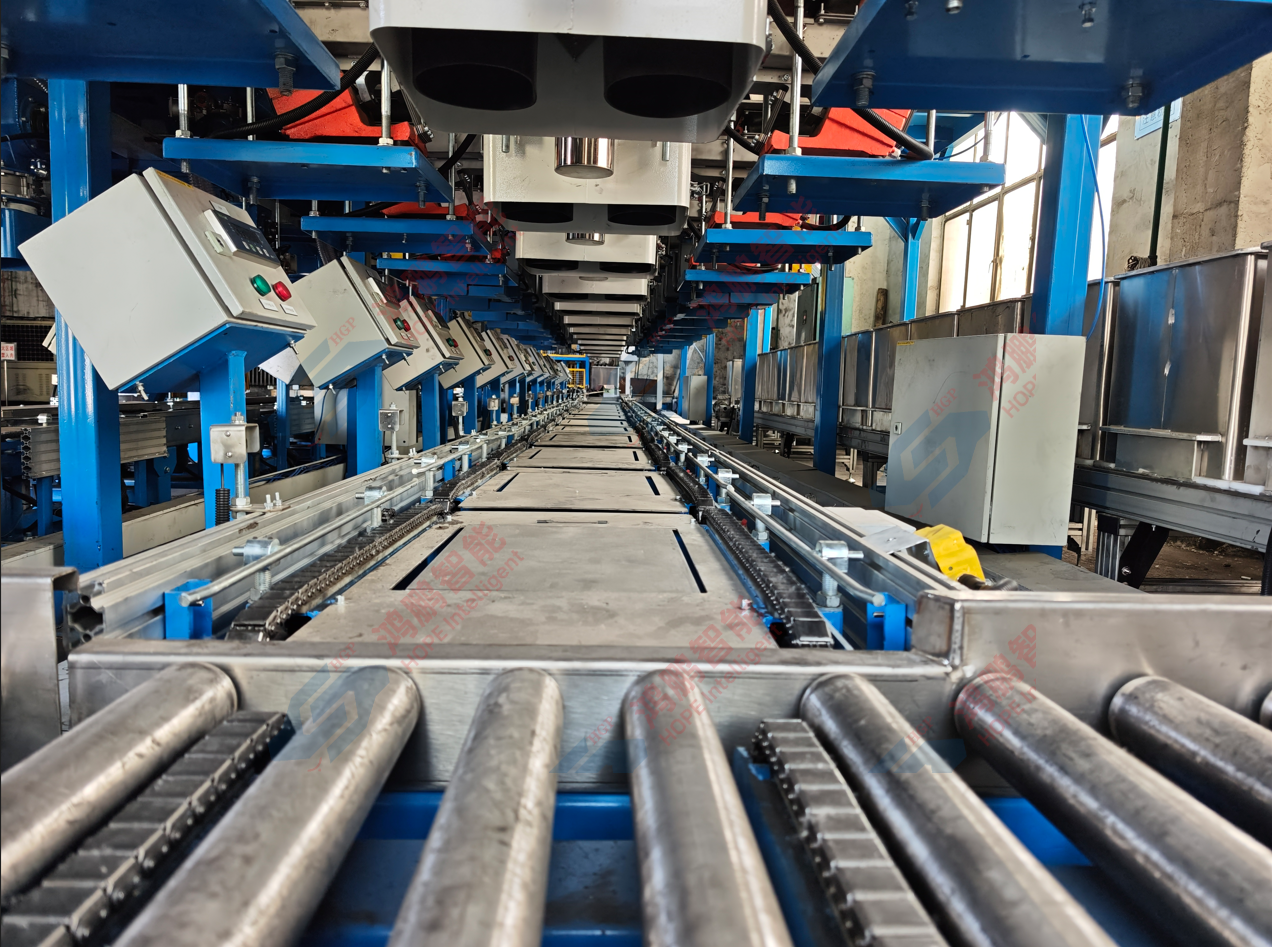

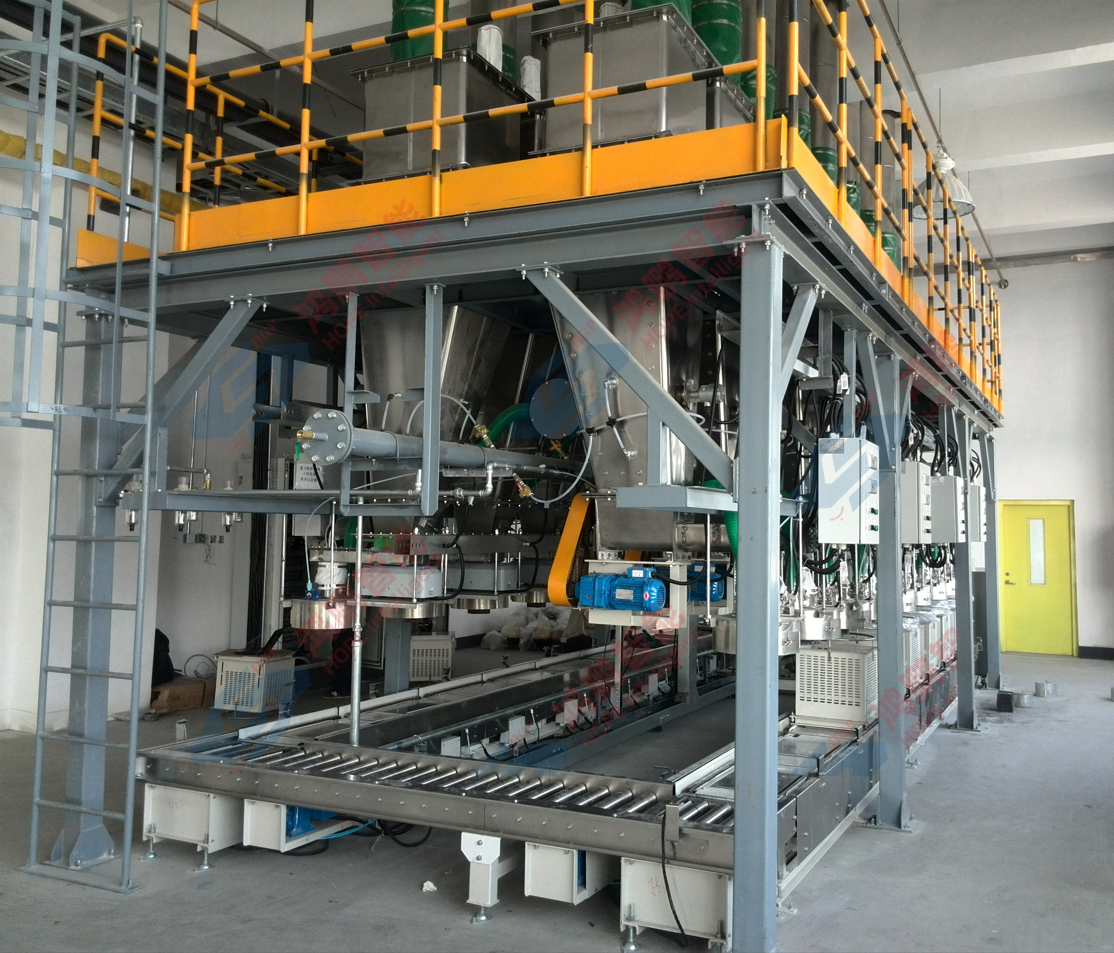

Intelligent Multi-Station Automated Small Chemicals Batching System

The intelligent multi-station automated small chemicals batching system is designed for unmanned batching of small powdered ingredients (accelerators, antioxidants, vulcanizing agents, colorants and other compounding ingredients). The system consists of 8–24 storage stations and 4–24 high-precision electronic scales, with a single-scale weighing range of 5–60 kg, a graduation of 1 g, and a daily batching capacity of 1000–1500 batches. According to recipe instructions, it automatically completes material picking, weighing and discharging; an error-proof identification mechanism verifies the weighing sequence and material identity. Batch bags are automatically sealed and transferred to the feeding station, fully replacing the inefficiency and error risks of manual batching.

· 8–24 stations and 4–24 scales, configured by number of recipe ingredients · Single scale 5–60 kg with 1 g graduation, meeting micro-ingredient accuracy requirements · 1000–1500 batches/day, shared supply for multiple internal mixers · Recipe error-proof identification + automatic discharge, eliminating wrong or missed batches · Unmanned operation, significantly reducing workshop labor and dust exposure · Connected with MES, batch-by-batch traceable batching records

Especially suitable for rubber product manufacturers with many recipe types and frequent changeovers (seals, hoses, conveyor belts, etc.) and tire plant small chemicals rooms; core equipment for labor-reduced and unmanned upgrades of mixing workshops.
