Carbon Black Monthly Silo and Primary/Secondary Conveying System

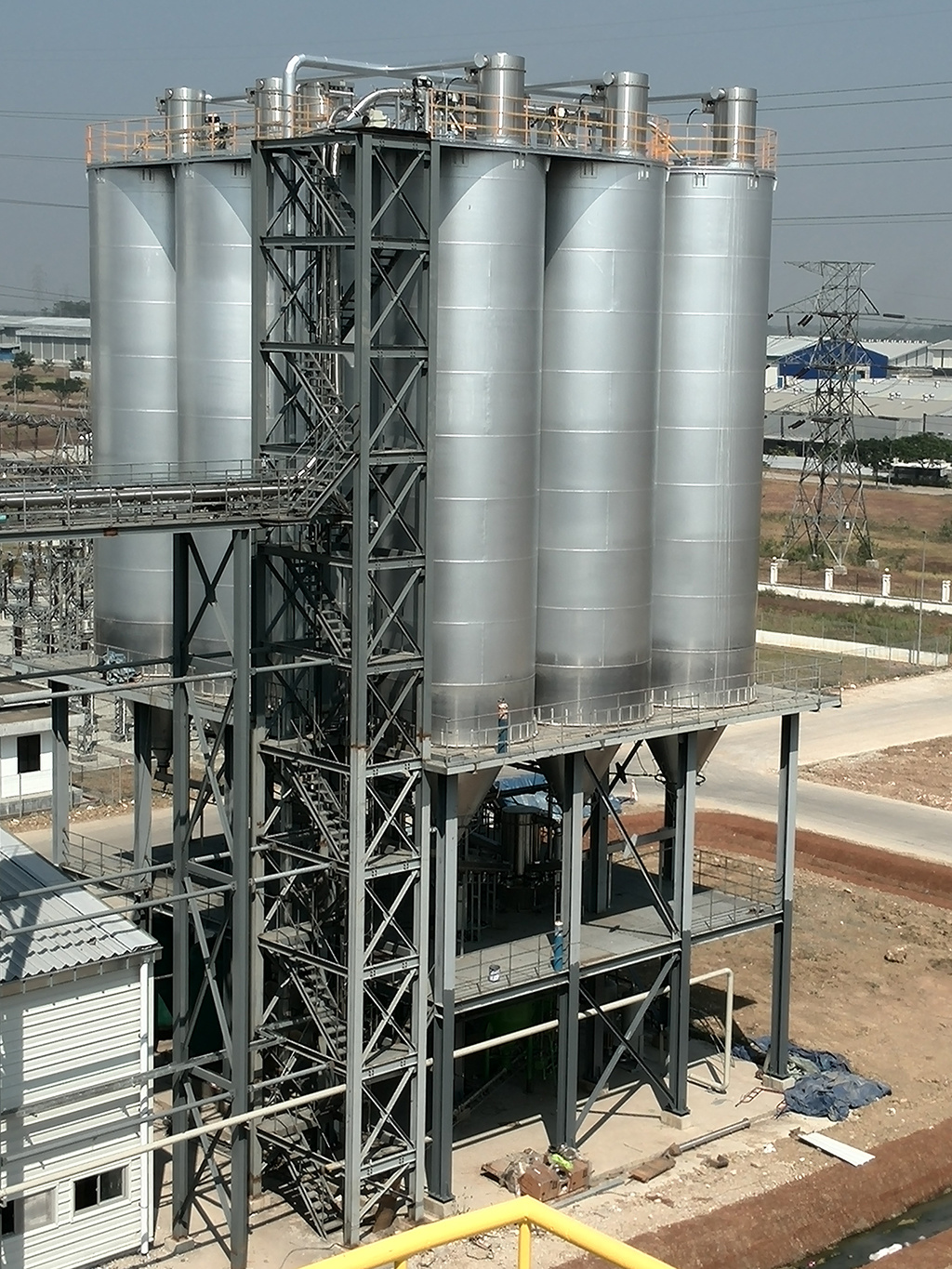

The carbon black monthly silo is the centralized storage unit for bulk carbon black in the mixing workshop. Together with the primary and secondary conveying systems (a combination of pneumatic conveying, bucket elevator, tubular chain conveying, etc.), it enables fully automatic material supply from tanker unloading to the monthly silo and then to the day silo. The silo features an anti-static, moisture-proof design and is equipped with an arch-breaking fluidizing device to prevent carbon black bridging and caking. The silo level is interlocked with the conveying system for automatic low-level replenishment.

· Centralized storage in the monthly silo; tanker pneumatic unloading directly into the silo reduces manual handling · Combined primary/secondary conveying design, customized to workshop layout and height · Anti-static, moisture-proof design adapted to carbon black material properties · Arch-breaking fluidizing device eliminates bridging and material interruption · Level-interlocked automatic replenishment, seamlessly connected with pneumatic conveying/weighing systems

Suitable for centralized bulk carbon black supply in tire plants and large rubber product plants. New workshops can be designed integrally with the civil works; for retrofit projects, the silo body and conveying route can be customized to the existing plant structure.
