Oil Conveying, Storage and Weighing System

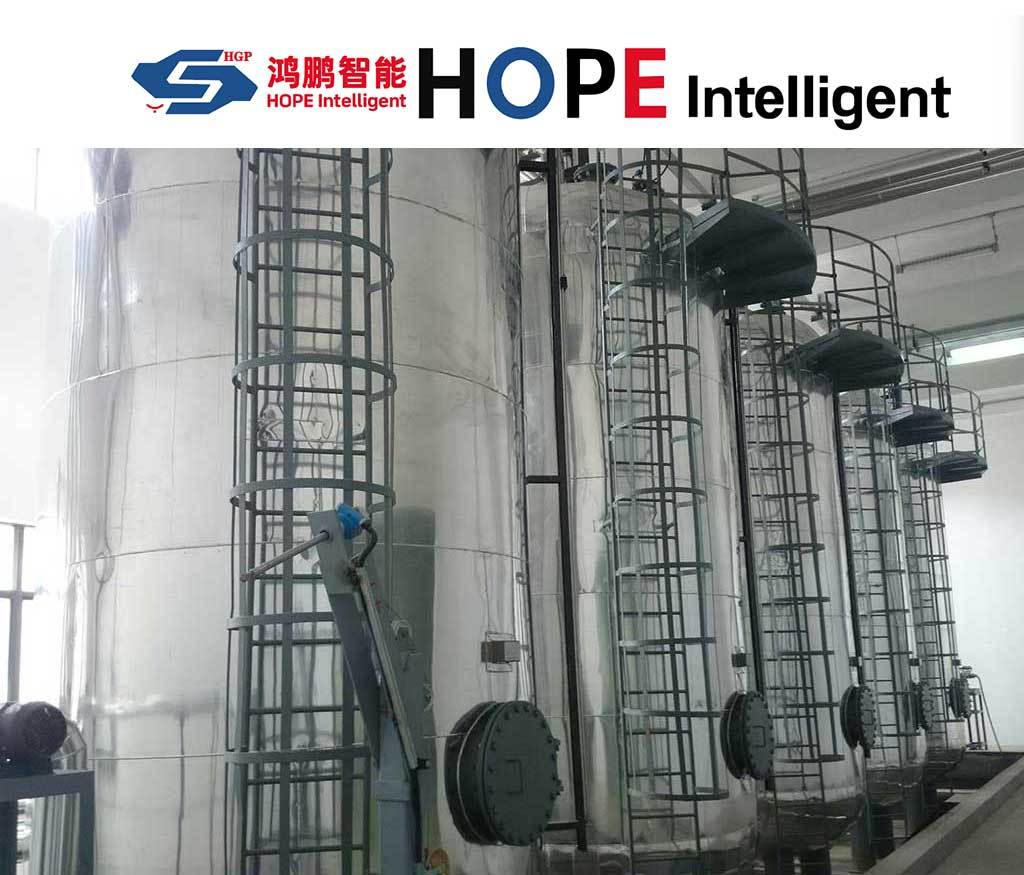

The oil conveying, storage and weighing system handles the storage, conveying, automatic weighing and metered injection of oils used in mixing (process oil, softeners, etc.). The system consists of oil storage tanks (with heating and insulation), transfer pump sets, weighing hoppers and oil injection mechanisms. Interlocked with the mixer feeding system control, it automatically completes weighing and injection according to the recipe, with precise control of injection temperature and volume. Six size classes are available according to internal mixer volume, covering all mainstream models from below 75 L up to 700 L.

· Heated and insulated oil storage tanks keep oil viscosity stable and pumpable · Complete delivery of transfer pump + weighing hopper + injection mechanism · Interlocked with the mixer feeding system for automatic metering and metered injection · Six size classes by mixer volume, covering below 75 L to 700 L · Anti-solidification pipeline design, easy oil change and cleaning

Suitable for all mixing processes requiring oil additives. Supplied and commissioned together with the mixer feeding system to ensure the injection rhythm matches the mixing process.
